ODM Magnetic Window Cleaner Custom Mold China (2026 Guide)

When sourcing ODM magnetic window cleaner custom mold China, you’re working with a factory that designs, molds, and manufactures the product to your specifications, then ships it under your brand. Typical minimum order quantities start at 100 units, custom injection-mold tooling takes 45-60 days, and costs range from $2,800-$8,500 depending on cavity count and material complexity. Fonoran’s magnetic window cleaner product range covers 5-35mm glass thickness with 6-stage adjustable magnetic force, shipped from our 12,000m² Taizhou facility with ISO9001, CE, and RoHS certification.

Executive Summary

• ODM vs OEM: ODM factories in Taizhou handle design, mold tooling, and production; OEM requires you to supply the design.
• Custom mold lead time: 45-60 days for single-cavity injection molds, 60-75 days for multi-cavity tooling in China.
• Typical tooling cost: $2,800-$5,000 for single-cavity molds, $6,000-$8,500 for four-cavity molds used in high-volume runs.
• Minimum order quantity: 100 units for custom-mold ODM projects at Fonoran, with unit pricing dropping 18-22% at 500+ units.
• Compliance documentation: CE marking is mandatory for cleaning equipment sold in the EU, and RoHS restricts each hazardous substance to below 0.1% by weight.
• Export packaging options: Color-box retail packaging, bulk cartons for distributor warehouses, and blister-card formats for hardware retail chains.

What Does ODM Mean for Magnetic Window Cleaners?

ODM (Original Design Manufacturer) means the Chinese factory owns the product design, engineering drawings, and injection-mold tooling. You select a base model, specify modifications (handle shape, microfiber pad thickness, magnet strength, color), and the factory produces it under your brand name. This differs from OEM (Original Equipment Manufacturer), where you provide complete CAD files and the factory only manufactures to your blueprint.

Why Choose ODM Over OEM?

ODM magnetic window cleaner custom mold China projects save you 6-10 weeks of design and prototyping time. Most distributors and hardware wholesalers lack in-house industrial designers, so working with a factory that already has proven mold designs for 5-35mm glass thickness reduces risk. You avoid paying for CAD engineering (typically $1,200-$2,500), prototype iterations, and structural testing that the factory has already completed across thousands of production runs.

Common ODM Customization Points

• Magnet strength: 6-stage adjustable force to match single, double, or triple-pane glass from 5mm to 35mm.
• Handle ergonomics: Modify grip angle, add rubberized overmold, or extend handle length for high-rise window access.
• Microfiber pad material: Choose coral fleece (300 GSM), chenille (400 GSM), or blended microfiber for streak-free cleaning on coated glass.
• Safety rope configuration: Anti-fall tether with carabiner clip rated to 15kg pull force, addressing buyer concerns about the outside half detaching during use.
• Color and branding: Pantone color matching for handles, laser-etched logos on ABS housing, or pad embroidery with your brand name.

One distributor in Germany found that off-the-shelf magnetic cleaners only worked reliably on 15-24mm glass, causing returns when customers installed them on thicker triple-pane windows. Switching to an ODM supplier with adjustable magnetic force cut product returns by 18% in the first six months.

In practice: A UK hardware wholesaler reduced SKU complexity by 40% after consolidating three fixed-magnet models into one ODM adjustable-force unit covering 5-35mm glass

Custom Mold Development Workflow and Timeline

Custom injection-mold tooling for magnetic window cleaners follows a five-phase workflow. Total time from deposit to first production batch ranges from 45 to 75 days, depending on cavity count and whether you request material testing or drop-test certification.

Single-Cavity vs Multi-Cavity Molds

Single-cavity molds produce one part per injection cycle. They cost $2,800-$5,000 and suit initial orders of 100-500 units. Multi-cavity molds (typically four or eight cavities) produce multiple parts per cycle, cutting per-unit molding time by 60-75% but raising tooling cost to $6,000-$8,500. For orders above 1,000 units, the multi-cavity investment pays back within the first production batch.

Material Selection and Mold Compatibility

• ABS plastic: Standard for handle housings, mold temperature 60-80°C, cycle time 35-45 seconds per part.
• PP (polypropylene): Lighter weight, lower cost, but less impact-resistant; used for budget-tier models.
• TPE overmold: Soft-touch grip requires two-shot molding or secondary insert-molding step, adding 10-12 days to lead time.
• Neodymium magnet housing: Requires precise cavity tolerances (±0.05mm) to prevent magnet rattle or misalignment during cleaning.

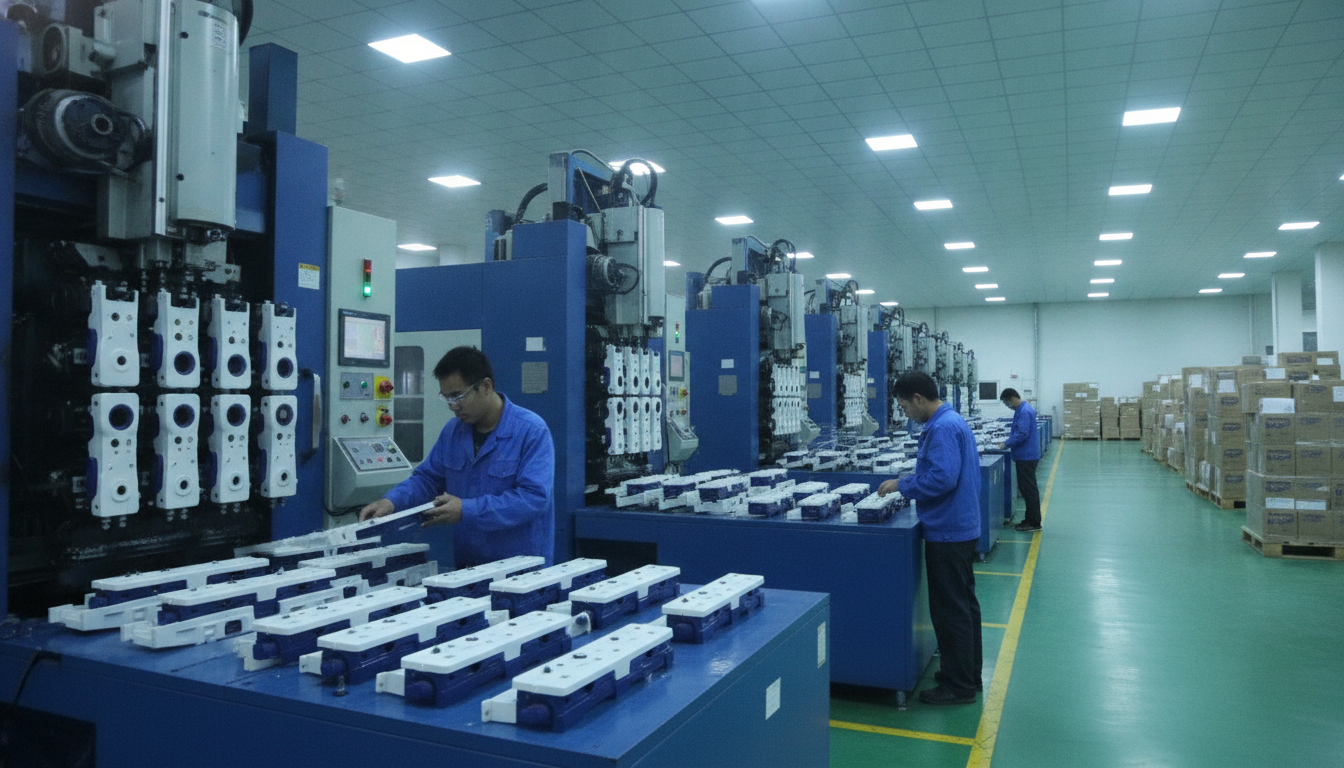

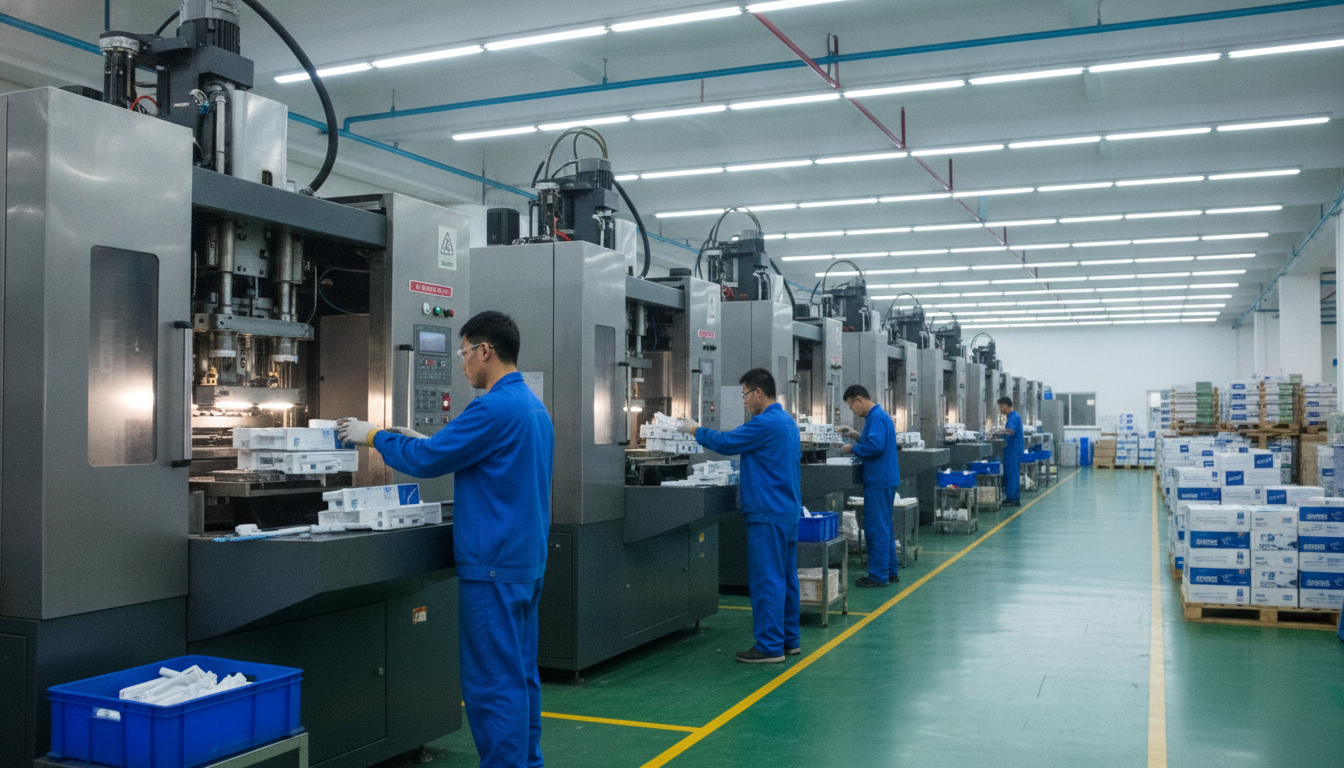

At our 12,000m² Taizhou factory with 400+ skilled workers, we run 24 injection-molding machines producing 50,000+ units per day. Mold maintenance includes cavity polishing every 20,000 cycles and ejector-pin replacement every 50,000 cycles to maintain dimensional accuracy.

Minimum Order Quantity and Tooling Cost Breakdown

Minimum order quantity for ODM magnetic window cleaner custom mold China starts at 100 units when the buyer covers tooling cost upfront. Some factories amortize mold cost across the first 500-1,000 units, raising the per-unit price but eliminating the separate tooling invoice.

Typical tooling cost: $2,800-$5,000 for single-cavity molds. MOQ: 100 units. Unit price drop: 18-22% when ordering 500+ units due to improved material-buying and reduced setup time per part.

Tooling Ownership and Reorder Flexibility

Most Chinese ODM factories retain mold ownership unless you pay a buyout fee (typically 1.5-2× the original tooling cost). Mold ownership matters for reorders: if the factory owns the mold, you must reorder from them; if you own it, you can move production to another facility. For wholesale magnetic window cleaner programs with multi-year contracts, negotiate mold ownership upfront to preserve supply-chain flexibility.

Cost Structure Per Order Tier

Payment Terms and Deposit Structure

Standard payment terms for custom-mold ODM projects: 30% deposit to start mold fabrication, 40% upon first-article sample approval, 30% balance before shipment. Some factories accept letters of credit for orders above $20,000, but most B2B distributors use wire transfer (T/T) to avoid LC fees that add 0.5-1.2% to the total order value.

Quality Control, Magnet Grade Testing, and Compliance

Quality control for ODM magnetic window cleaner custom mold China includes magnet-grade verification, pull-force testing, drop testing, and material compliance certification. Buyers targeting EU markets require CE marking and RoHS compliance; North American buyers often request California Prop 65 testing for phthalates and lead content.

Magnet Grade and Pull-Force Testing

Neodymium magnets are graded N35 to N52, with N52 offering the strongest magnetic field. For magnetic window cleaners covering 5-35mm glass, N42 or N48 magnets provide sufficient pull force (12-18 kg) without making the cleaner too heavy for single-handed operation. Factories test pull force using a digital dynamometer, measuring separation force at 5mm, 15mm, 25mm, and 35mm glass thicknesses to verify the 6-stage adjustable mechanism works across the full range.

Drop Testing and Safety Rope Verification

High-rise window cleaning requires anti-fall protection. Drop testing simulates a 3-meter fall onto concrete, verifying that the safety rope and carabiner clip hold the outside cleaning half without detachment. The rope must withstand 15kg static pull force, and the carabiner gate must lock securely under load. This addresses buyer concerns about the outside half falling during use, a common complaint on marketplace product listings.

CE and RoHS Compliance Documentation

• CE marking: Required for cleaning equipment sold in the EU; covers Low Voltage Directive (LVD) and Restriction of Hazardous Substances (RoHS).
• RoHS compliance: Restricts lead, mercury, cadmium, hexavalent chromium, PBB, and PBDE to below 0.1% by weight (cadmium below 0.01%).
• Material test reports: SGS or TUV lab reports for ABS plastic, TPE overmold, and microfiber pads, confirming no restricted substances.
• Magnet MSDS: Material Safety Data Sheet for neodymium-iron-boron magnets, required by some freight forwarders for air-shipment classification.

Our ISO9001-certified facility in Taizhou maintains batch traceability: every production run receives a unique lot number linking back to raw-material certificates, mold-cavity records, and QC inspection logs. This traceability is critical for CE ISO certified magnetic window cleaner shipments to EU distributors who must provide technical files during market-surveillance audits.

In practice: An Australian facility-management company avoided a $12,000 product recall by requesting batch-traceability documentation before the first container shipment, catching a magnet-grade mismatch in pre-production samples

Export Packaging, Private-Label Branding, and Distributor-Ready SKUs

Export packaging for ODM magnetic window cleaner custom mold China includes color-box retail packaging, bulk cartons for warehouse distribution, and blister-card formats for hardware retail chains. Private-label branding adds your logo, product name, and compliance marks to the packaging, transforming factory-generic units into distributor-ready SKUs.

Packaging Format Options

Private-Label Branding Elements

• Logo placement: Screen-printed or pad-printed on handle housing, embroidered on microfiber pads, or hot-stamped on packaging.
• Instruction manual: Multilingual user guide (English, German, French, Spanish) with your brand name and customer-service contact.
• Barcode and SKU: EAN-13 or UPC-A barcode printed on packaging, linked to your internal inventory system.
• Compliance marks: CE logo, RoHS symbol, UKCA marking (for UK post-Brexit), and recycling symbols positioned per EU Packaging Directive.
• QR code: Links to video installation guide or product registration page, improving post-sale engagement.

Master Carton Specifications

Standard export cartons for magnetic window cleaners measure 60×40×35 cm and hold 24-36 units depending on packaging format. Carton weight ranges from 12-18 kg, staying below the 20 kg single-person lift limit for warehouse handling. Cartons are palletized 8-10 layers high on EUR pallets (120×80 cm) or standard pallets (120×100 cm), with stretch-wrap and corner protectors for container loading.

Shipping from Ningbo port to major destinations: 18-22 days to Hamburg, 28-32 days to Los Angeles, 20-24 days to Sydney, 35-40 days to Toronto via Vancouver transshipment. Air freight cuts transit to 5-7 days but raises per-unit shipping cost by $2.80-$4.50, practical only for urgent restocks or sample shipments.

Key Takeaways

• ODM factories in Taizhou handle design, mold tooling, and production, saving buyers 6-10 weeks compared to OEM projects where you supply CAD files.
• Custom injection-mold tooling takes 45-60 days for single-cavity molds and costs $2,800-$5,000, with multi-cavity molds at $6,000-$8,500 for high-volume runs.
• Minimum order quantity starts at 100 units when the buyer pays tooling cost upfront, with unit pricing dropping 18-22% at 500+ units.
• Neodymium magnet grades N42 to N48 provide 12-18 kg pull force for 5-35mm glass, verified by digital dynamometer testing at four thickness points.
• CE marking is mandatory for cleaning equipment sold in the EU, and RoHS restricts each hazardous substance to below 0.1% by weight.
• Export packaging options include color-box retail packs at $0.45-$0.75 per unit, blister cards at $0.60-$0.95, and bulk cartons at $0.12-$0.20 for distributor warehouses.

Ready to start your ODM magnetic window cleaner project with custom mold tooling from China?
Request a Free Tooling Quote →

Written by Daniel Chen, Product Engineer at Fonoran, 12 years in magnetic window-cleaner design.
